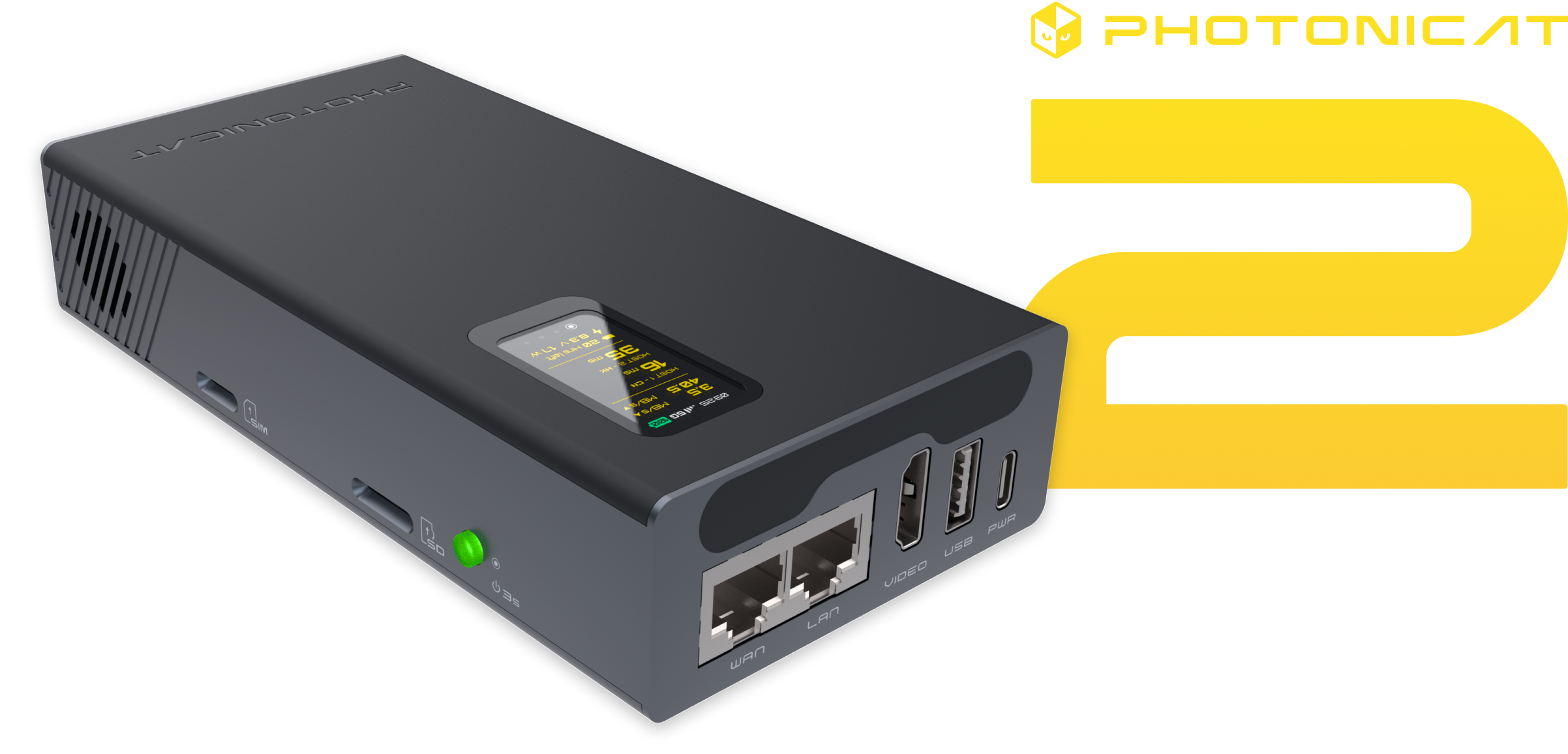

Photonicat 2
The next generation of our high-performance open-source portable router.
Featuring an LCD screen, larger battery, expandable antennas and much more...
Visit our Kickstarter Campaign

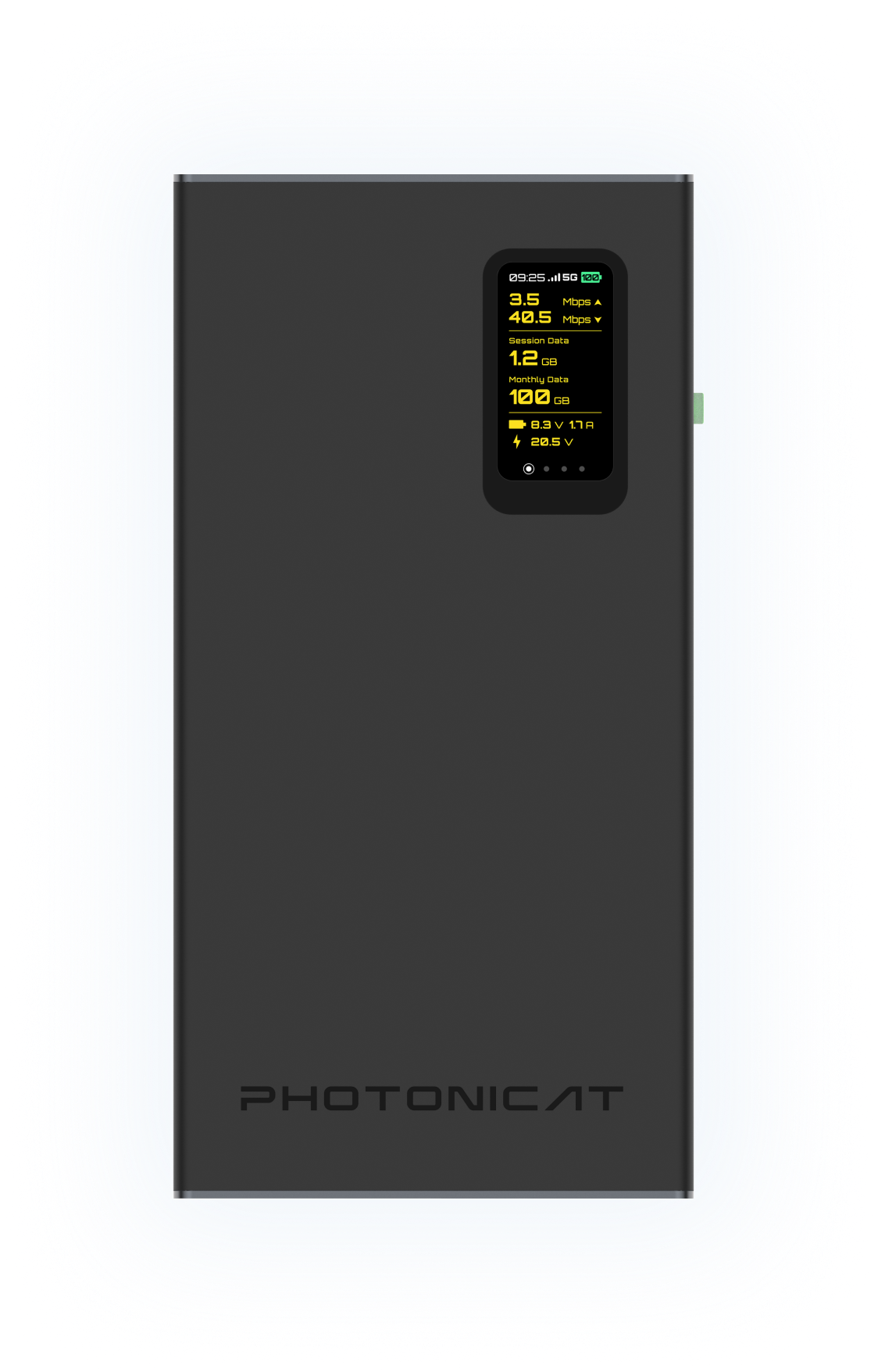

Connected Anywhere
Photonicat 2 is designed to provide seamless connectivity anywhere you are,
long battery life, expandable antennas and OpenWRT / Debian / Android.
Packed with Features

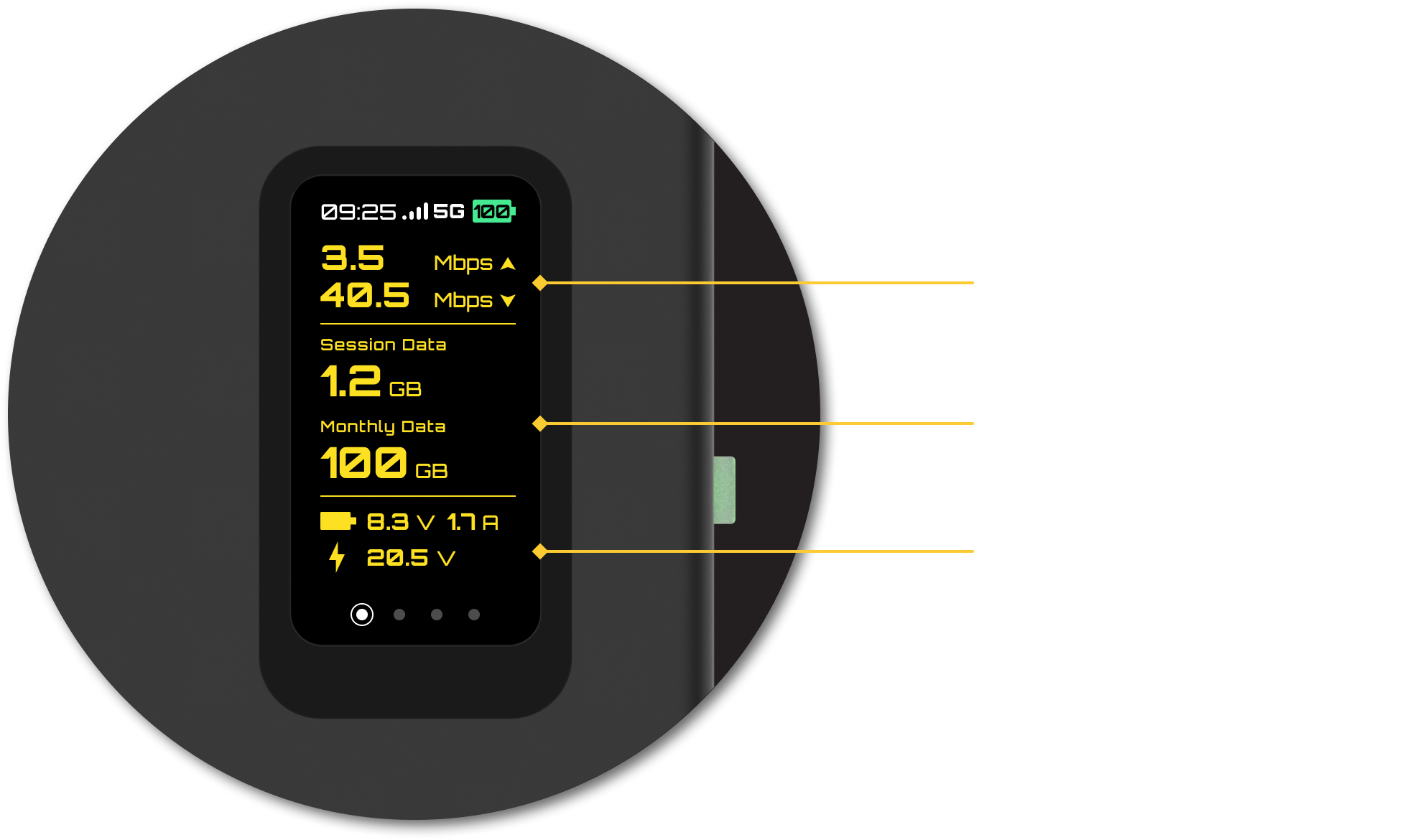

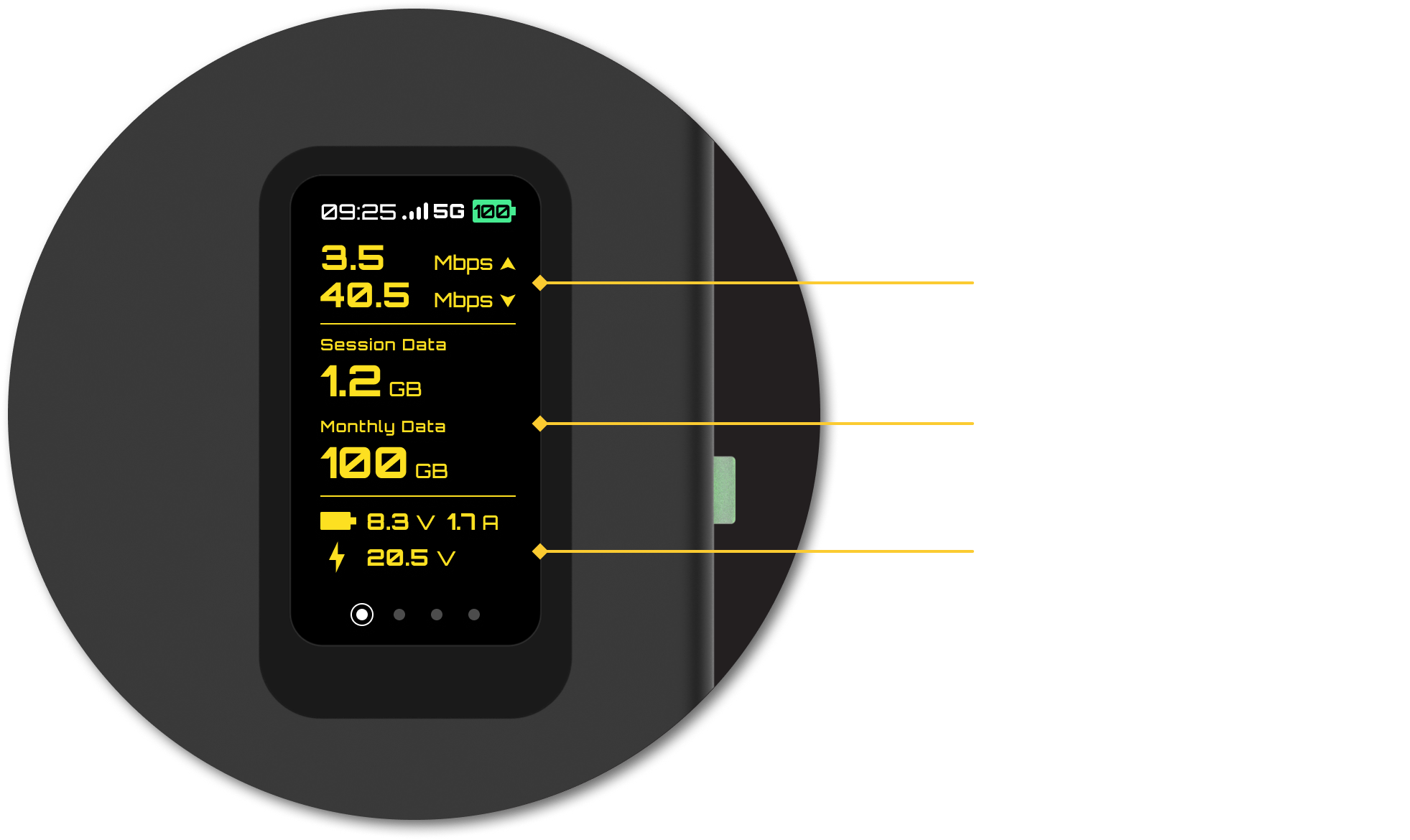

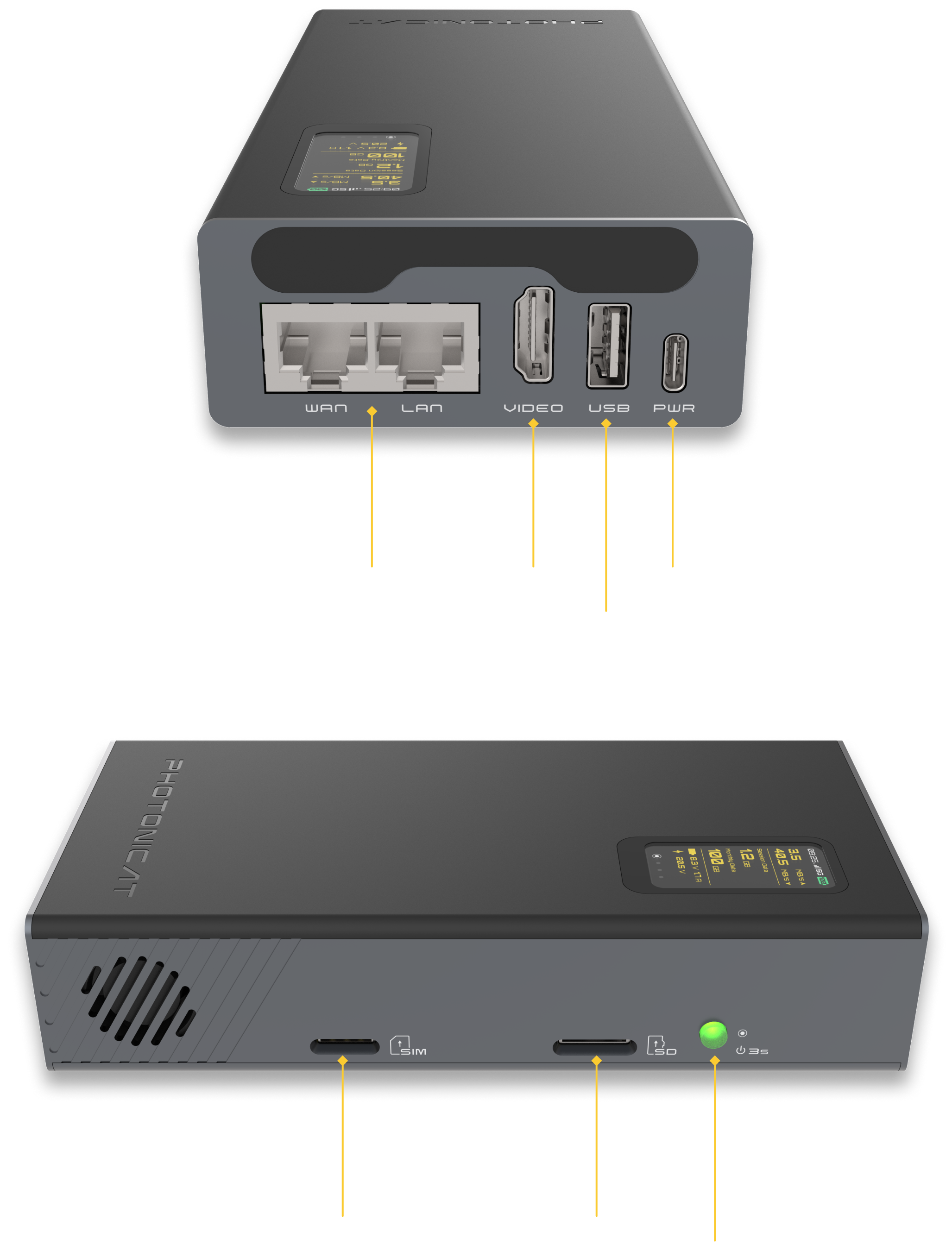

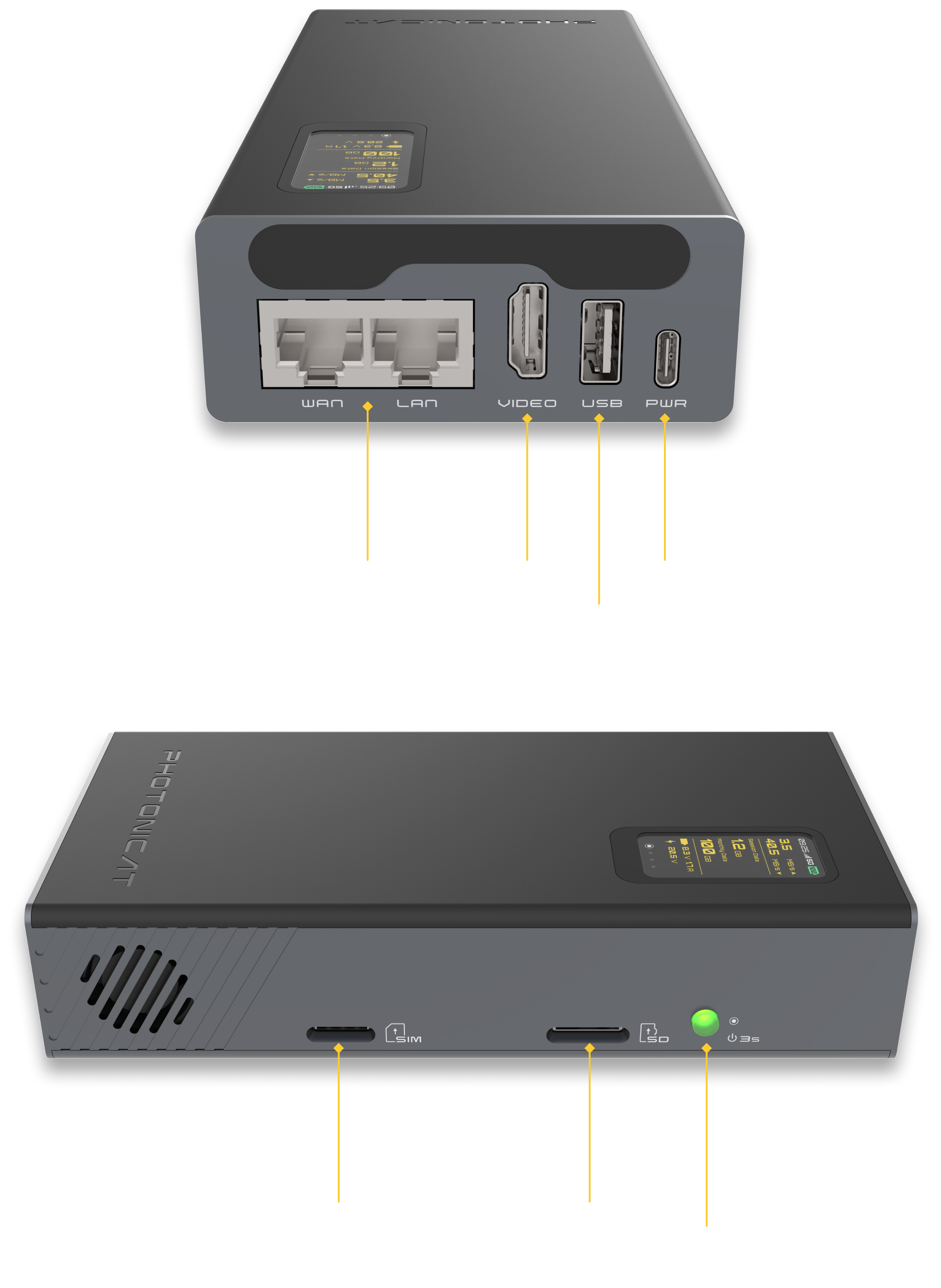

Same Ports. New Screen

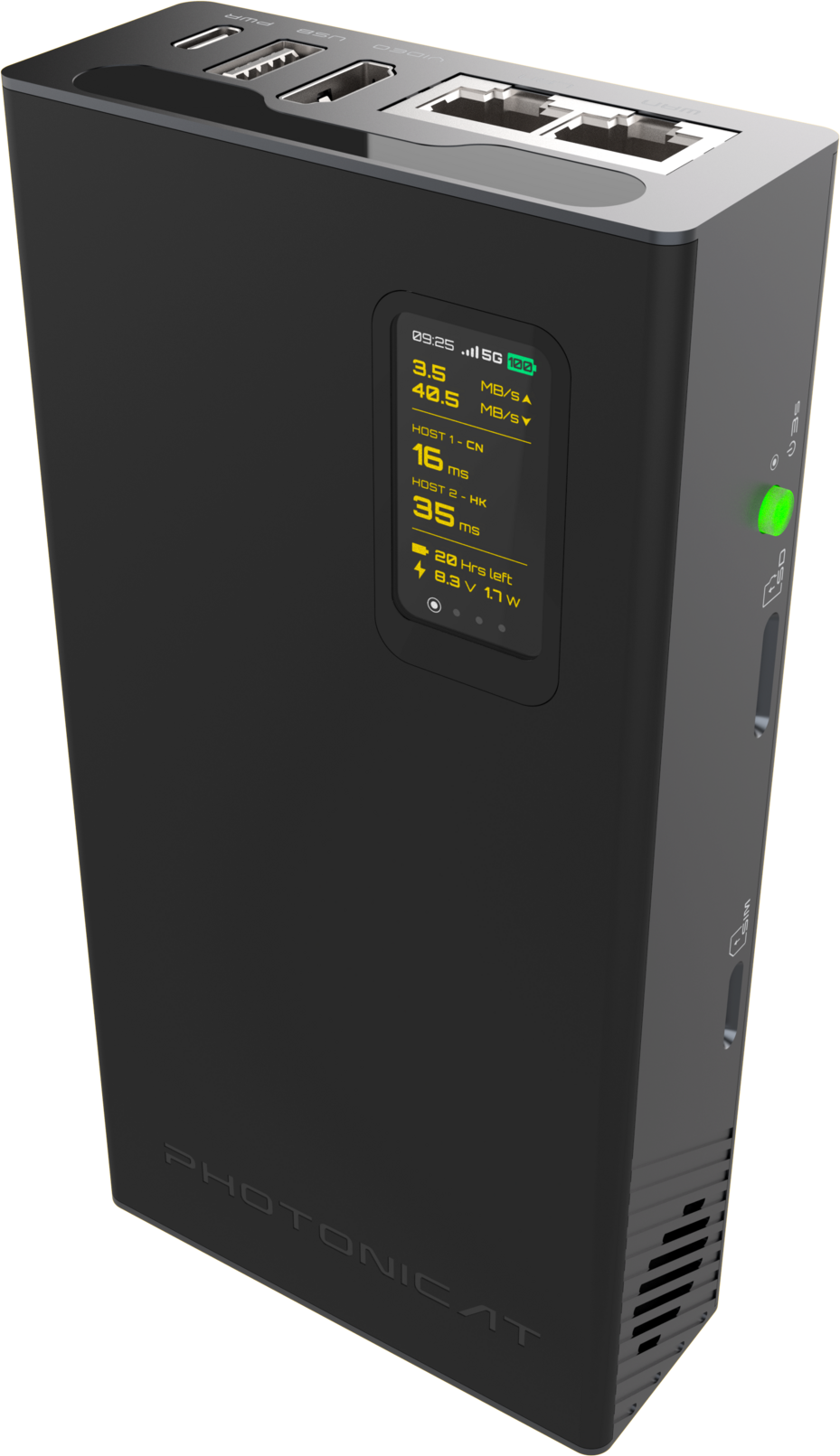

Built on the same port layout as before, now featuring a new intuitive color LCD,
providing key info at a glance and fully customizable via open-source Go and JSON.

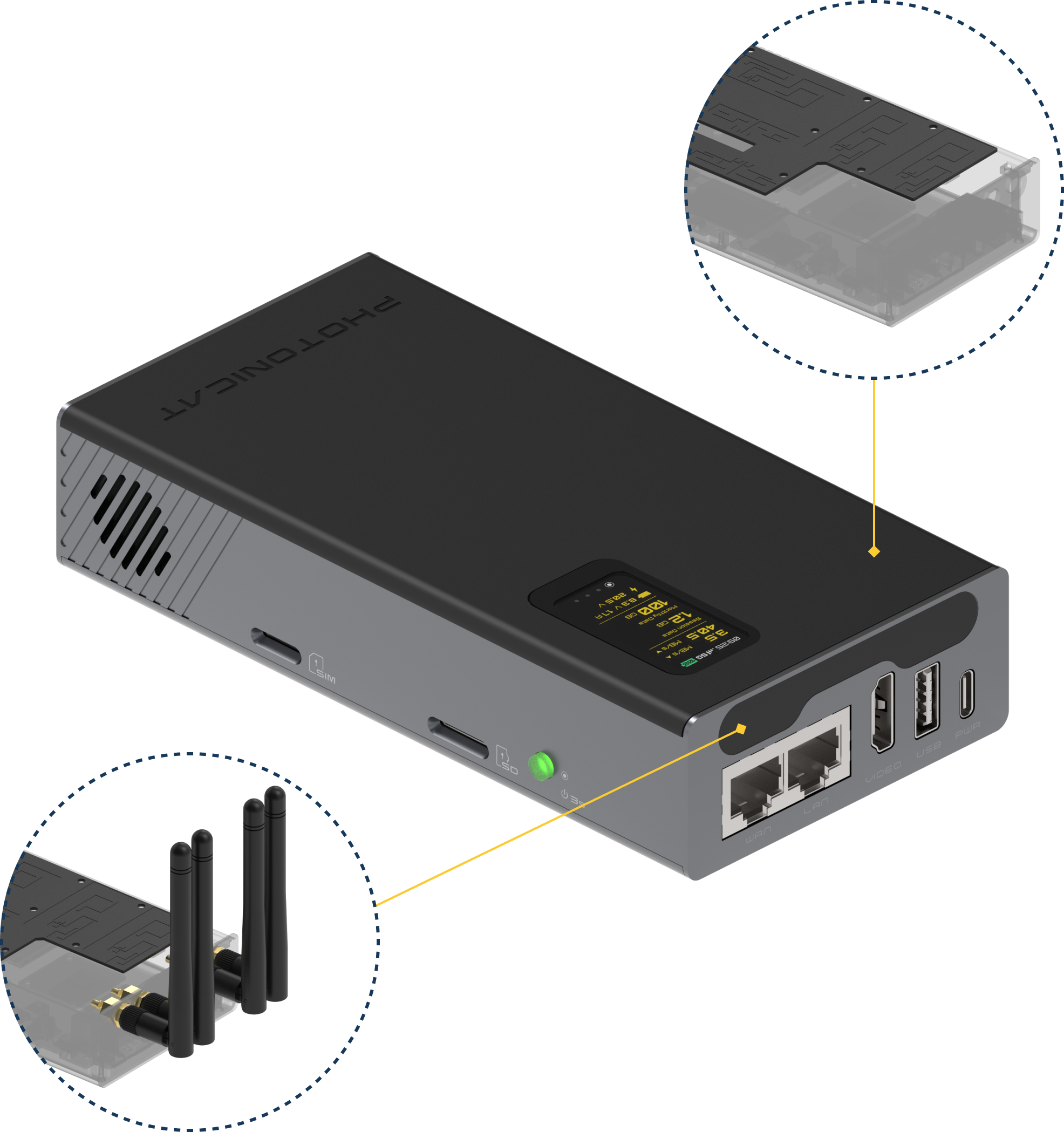

Expandable Antennas
Photonicat 2 includes 7 internal antennas neatly tucked under the top cover.
Optionally, remove the rear cover to mount up to four external SMA antennas.

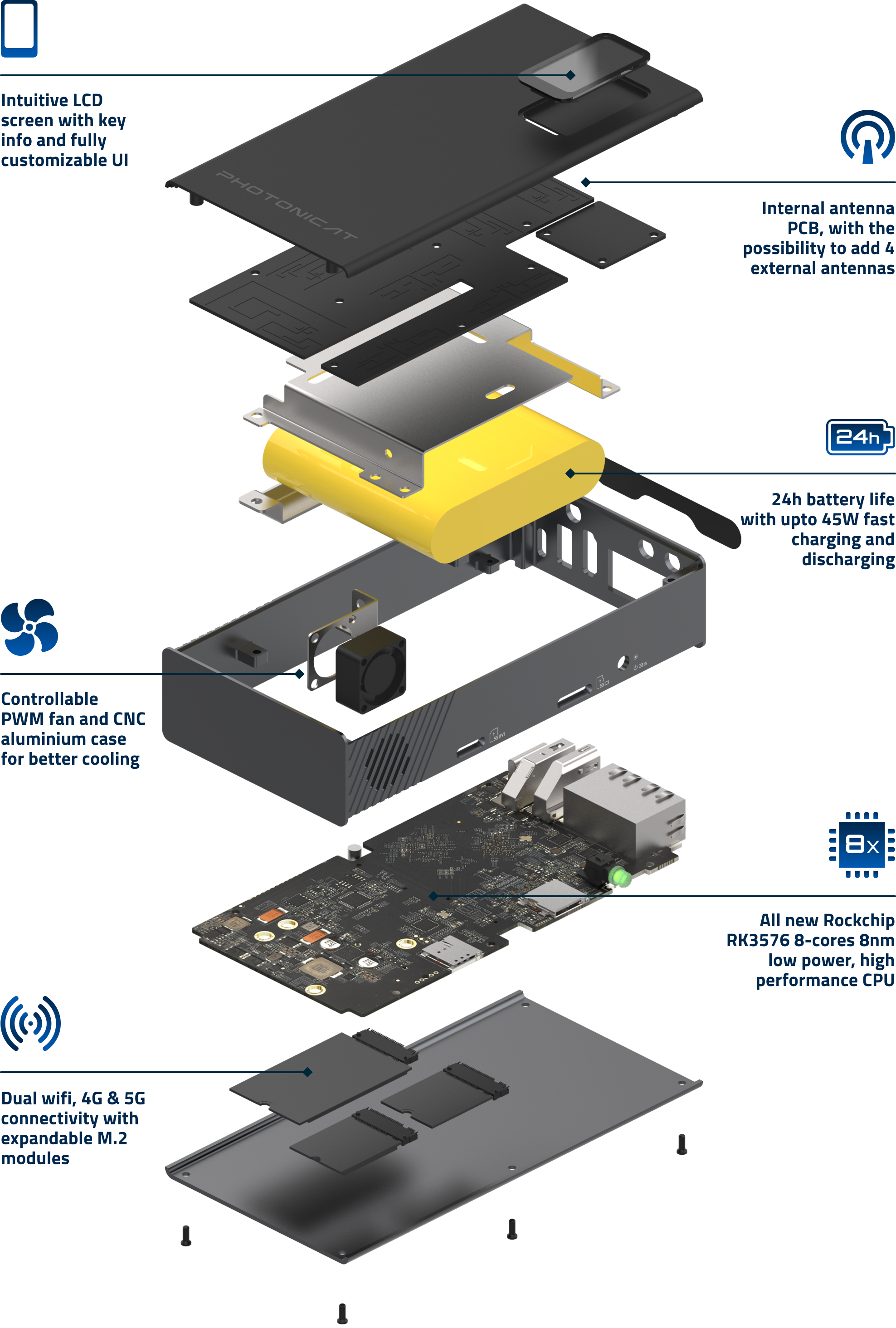

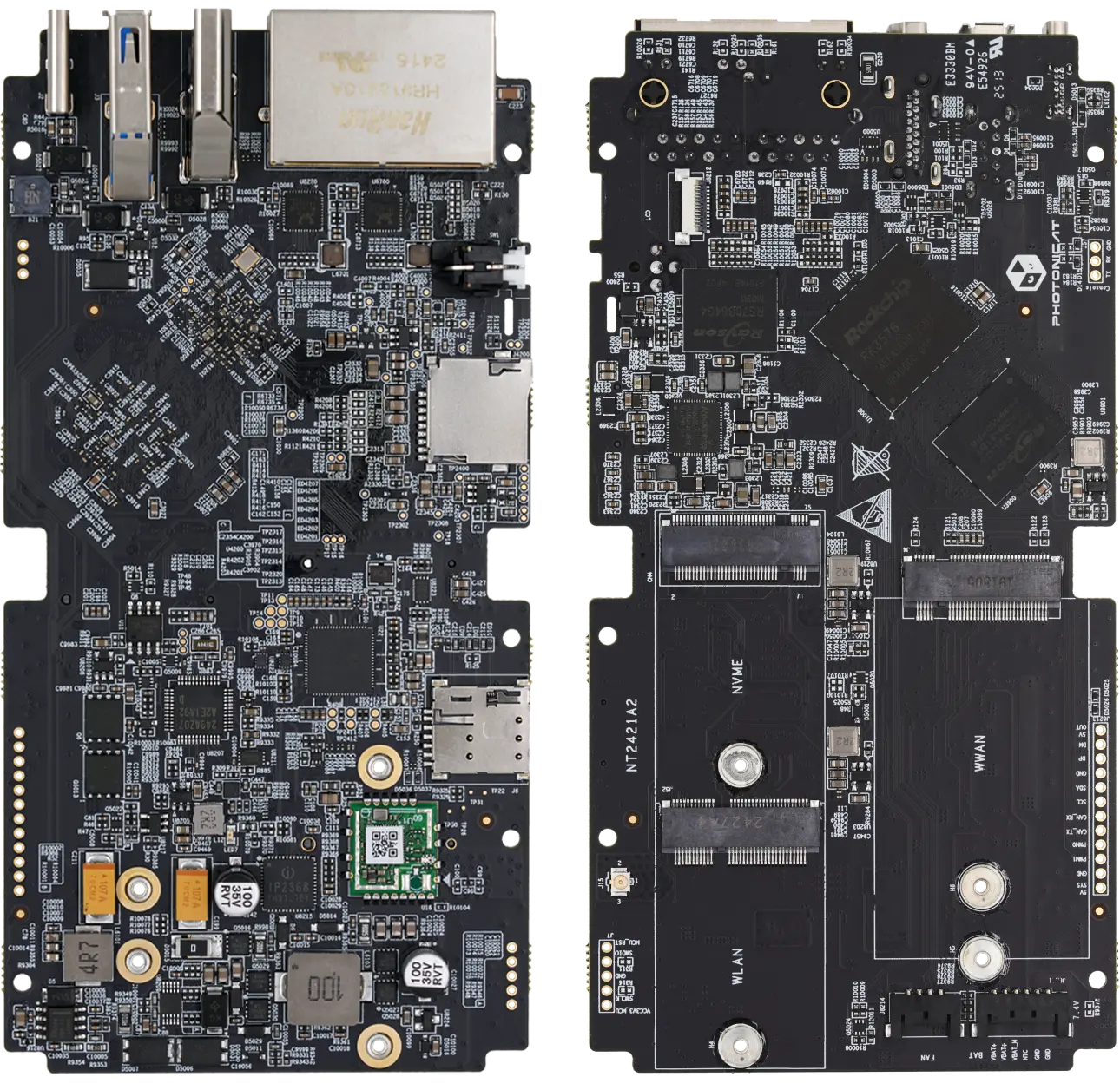

Powerful & DIY Ready
CPU: RK3576 CPU, High performance 8 core @ 2.2GHz
Memory: 4/16 GB LPDDR5
Storage: 64/128 GB eMMC, SSD and SD card slot
NPU: Integrated 6 TOPs NPU AI accelerator
MCU: Renesas RA2E1 cortex M23 ultra-low power MCU
Sensors: Temp, Voltage, Current, Accel, RPM
I/O Ports:
• 2x Gigabit ethernet ports
• 1x USB3.0 +1x USB-C ports
• 1x HDMI port
• 1x SIM card slot + 1x SD card slot
Connectivity*: Dual Wifi / BT / 4G / 5G
I/O Ports:
• 2x Gigabit ethernet ports
• 1x USB2 +1x USB-C ports
• 1x HDMI port
• 1x SIM card slot + 1x SD card slot
Battery*: 4 * 18650 Li-Ion Battery, 7.4V, 51 Wh, CCC Certified
Input: PD 9~20V 3A max

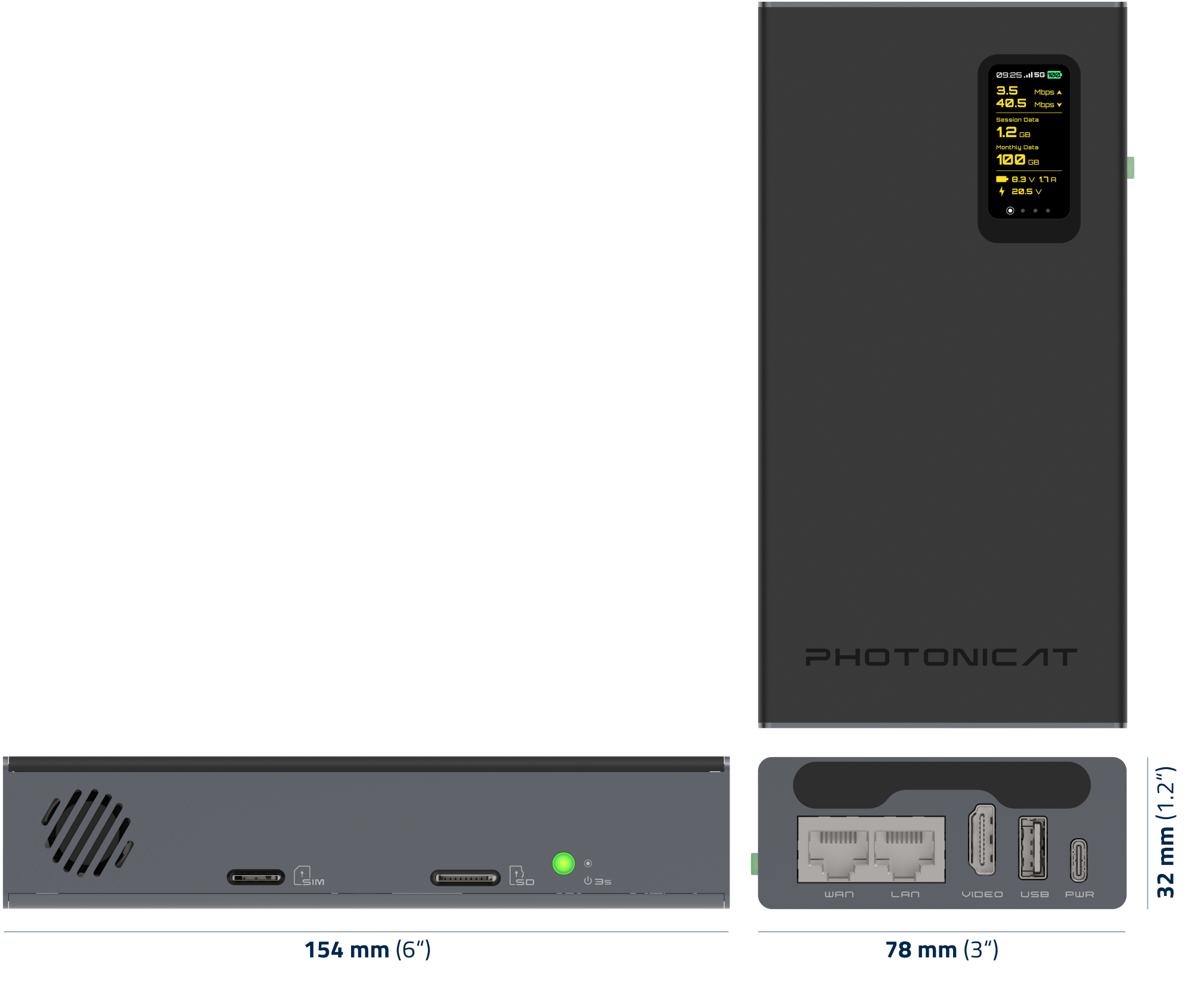

Dimensions: (L) 154 x (H) 32 x (W) 78 mm
*Wifi, 4G/5G and battery apply to corresponding Photonicat 2

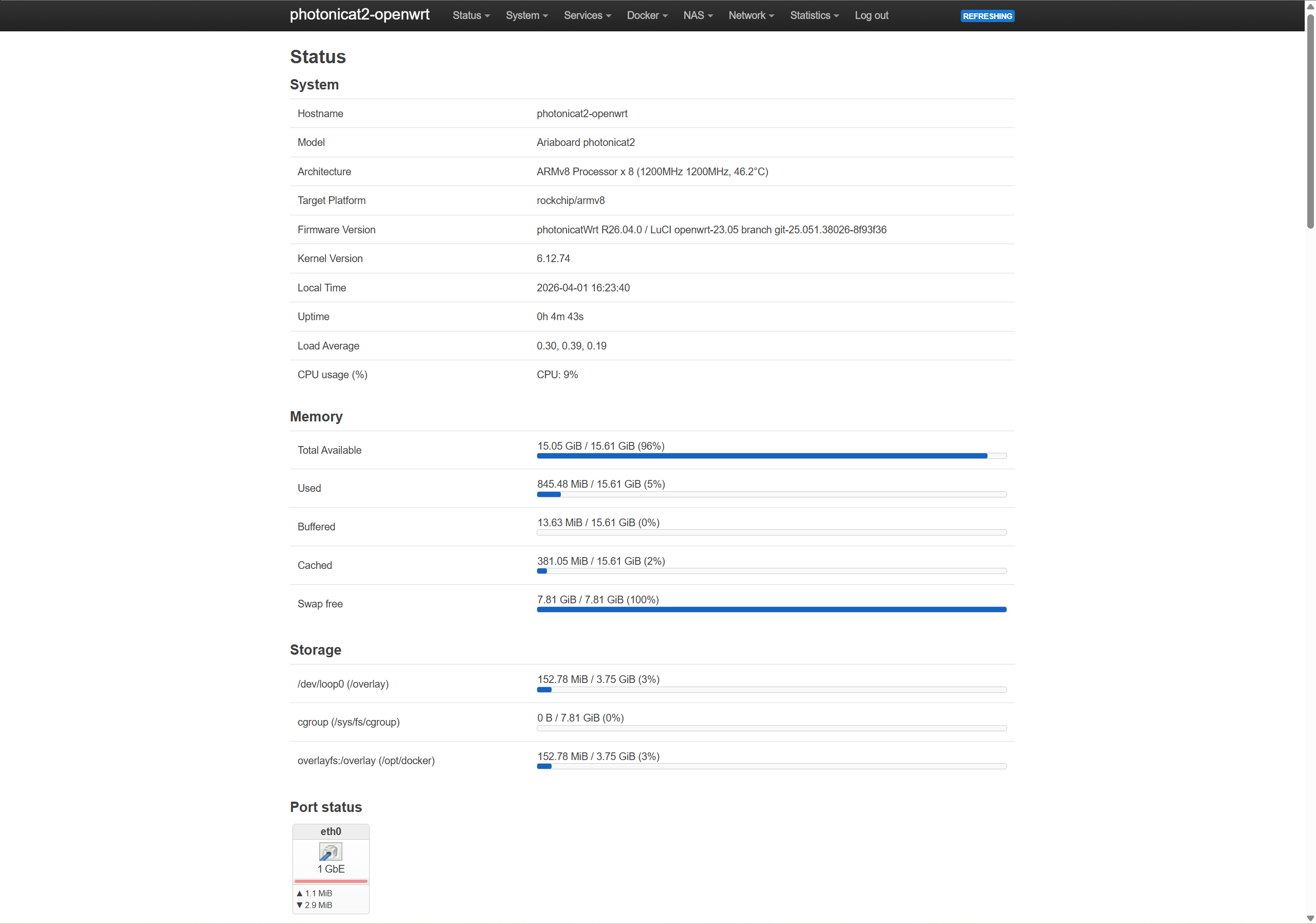

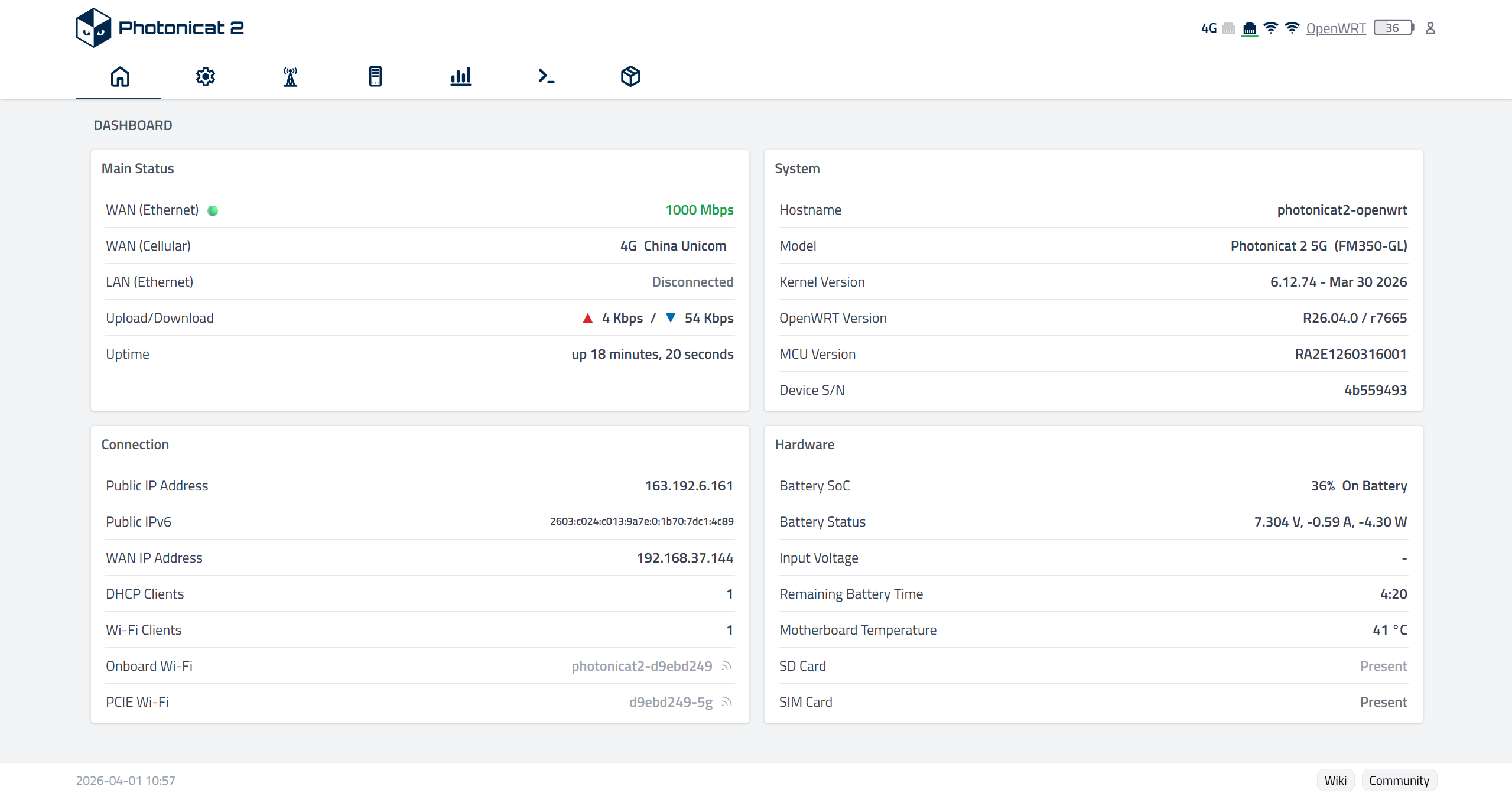

Open-Source
Flashable firmware for unlimited customization.
Transforms into a router, kiosk computer, NAS server, in-car computer, and more.
Get it Now
Available on Taobao, starting from ¥1099 / $159.
1 year warranty. Long term support. Ships Globally.
